NitonTM DXL Precious Metal Analyzer

Name: NitonTM DXL Precious Metal Analyzer
Brand: ALFA INDUSTRIAL SOLUTIONS
Price: 1950000.0 INR
Availability: InStock

Price 1950000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

NitonTM DXL Precious Metal Analyzer Specification

Equipment Type
XRF Precious Metal Analyzer

Resolution
High resolution for precise elemental analysis

Sensor Type
Silicon drift detector (SDD)

Capacity
Capable of analyzing multiple samples per day

Application Media
Jewelry, bullion, coins, scrap, and precious metal materials

Connectivity Type
USB ports, network connectivity

Pressure Range
Ambient atmospheric pressure

Protection
Sample chamber interlock for operator safety; closed-beam design

Humidity %
0 to 90% non-condensing

Frequency
50/60 Hz

Diameter
Sample chamber supports various sizes; 10-mm or 20-mm collimators available

Measurement Range
Detects elements from S (Sulfur) to U (Uranium)

Temperature Range
Operating temperature 0C to 40C

Material
Rugged, durable construction with compact benchtop design

Power Supply
100-240 V AC, 50/60 Hz

Power Consumption
75 W max

Accuracy
High analytical accuracy for precious metals assay

Display Type
Industrial touch-screen color LCD display

Range
Detects gold (Au), silver (Ag), platinum (Pt), and other precious metals

Interface
Intuitive touchscreen user interface

Output Formats
PDF, CSV, customizable reports

Analysis Speed
Rapid analysis, typically 30 seconds per sample

Printer Compatibility
Direct USB printer support

Dimensions
310 mm x 390 mm x 360 mm (H x W x D)

Excitation Source
50 kV x-ray tube

Weight
Approximately 12.5 kg (27.5 lbs)

Data Storage
Internal memory for up to 10,000 results

Calibration
Automatic calibration and standardization

Safety
Fully shielded sample chamber with an interlock system

NitonTM DXL Precious Metal Analyzer Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About NitonTM DXL Precious Metal Analyzer

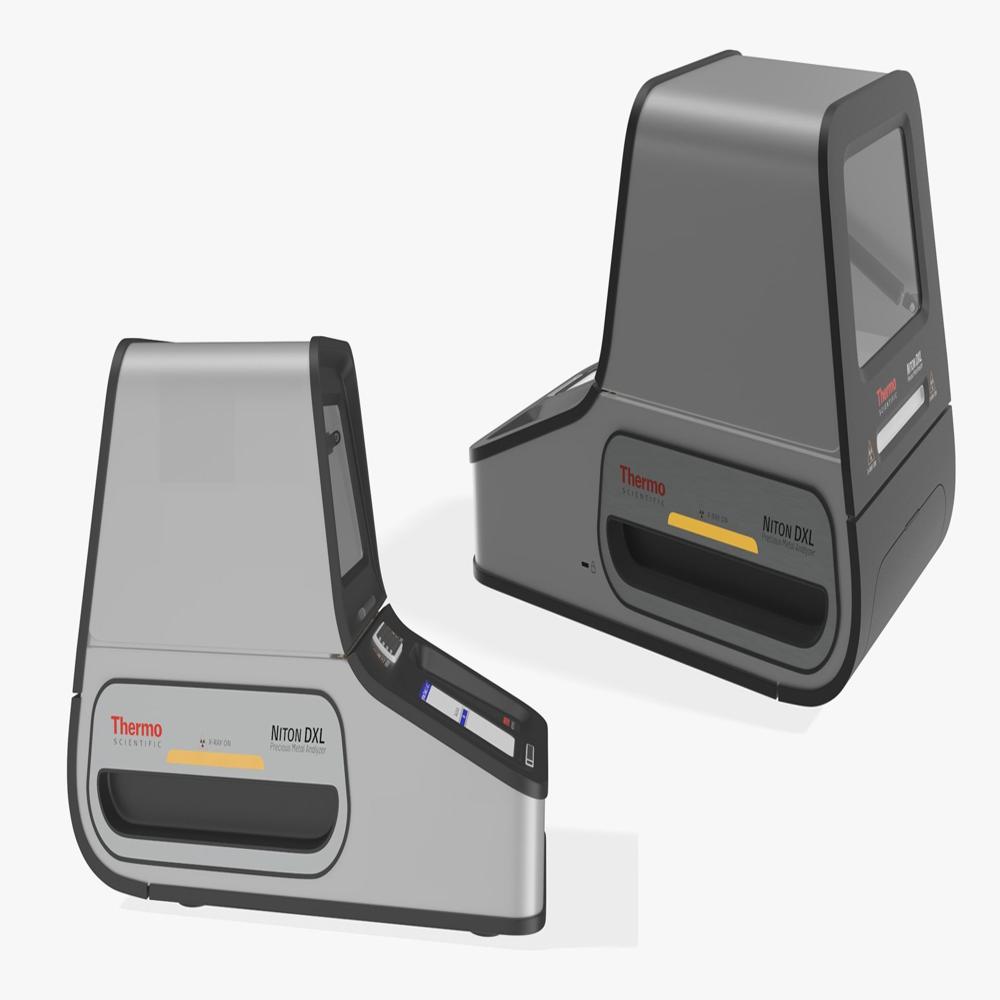

Thermo Scientific Niton DXL Precious Metal Analyzer provides fast and accurate testing of gold and other precious metals within seconds. It is non-destructive, easy to use, and ideal for jewellery shops, refineries, and recycling units. With one-button operation and gold-plating detection, it ensures reliable purity analysis without acids or damage.

Exceptional Speed and Precision

Experience swift results with rapid, 30-second analysis per sample and high analytical accuracy. The NitonTM DXL leverages advanced X-ray fluorescence (XRF) technology and a high-resolution silicon drift detector to ensure the precise identification and quantification of precious metal content within a wide range of materials.

User-Focused Operation and Safety

Operate with ease using the intuitive industrial touchscreen LCD display and automatic calibration features. The fully shielded sample chamber with automatic interlocks and a closed-beam design provides optimal protection for operators, making it safe for use in busy environments like jewelry shops or refineries.

Versatile Applications and Reporting

Suitable for analyzing jewelry, coins, bullion, and scrap, this benchtop device accommodates various sample sizes. Extensive data storage, USB and network connectivity, customizable output reports (PDF, CSV), and direct printer support streamline the workflow for manufacturers, importers, and suppliers across India.

FAQ's of NitonTM DXL Precious Metal Analyzer:

Q: How does the NitonTM DXL Precious Metal Analyzer ensure operator safety during analysis?

A: The analyzer features a fully shielded sample chamber equipped with an interlock system, as well as a closed-beam design. This ensures that X-ray exposure is contained within the device, protecting the operator during each use.

Q: What types of precious metals and materials can be analyzed with this device?

A: The NitonTM DXL can detect a range of elements from sulfur (S) to uranium (U), with high accuracy for precious metals like gold (Au), silver (Ag), platinum (Pt), as well as coins, jewelry, bullion, scrap, and other precious metal materials.

Q: When is calibration or maintenance needed for the analyzer?

A: The analyzer features automatic calibration and standardization, greatly reducing the need for manual intervention. Maintenance typically involves routine checks and following the manufacturer's recommended service schedule for optimal accuracy and performance.

Q: Where can the NitonTM DXL Analyzer be used?

A: Thanks to its compact benchtop design and robust construction, the analyzer is suitable for jewelry stores, refineries, assay labs, and quality control departments in manufacturing and scrap trading facilities across India.

Q: What is the process for analyzing a sample using the NitonTM DXL?

A: Simply place your sample in the chamber, select the appropriate analysis mode using the touchscreen interface, and initiate the process. The analyzer completes high-resolution testing in about 30 seconds, storing results internally and allowing for immediate report generation.

Q: How does the device benefit importers, manufacturers, and suppliers?

A: It delivers rapid, accurate precious metal verification and helps streamline inventory control and quality assurance with its high-speed analysis, extensive report customization, and easy data transfer options, thereby enhancing business efficiency.
