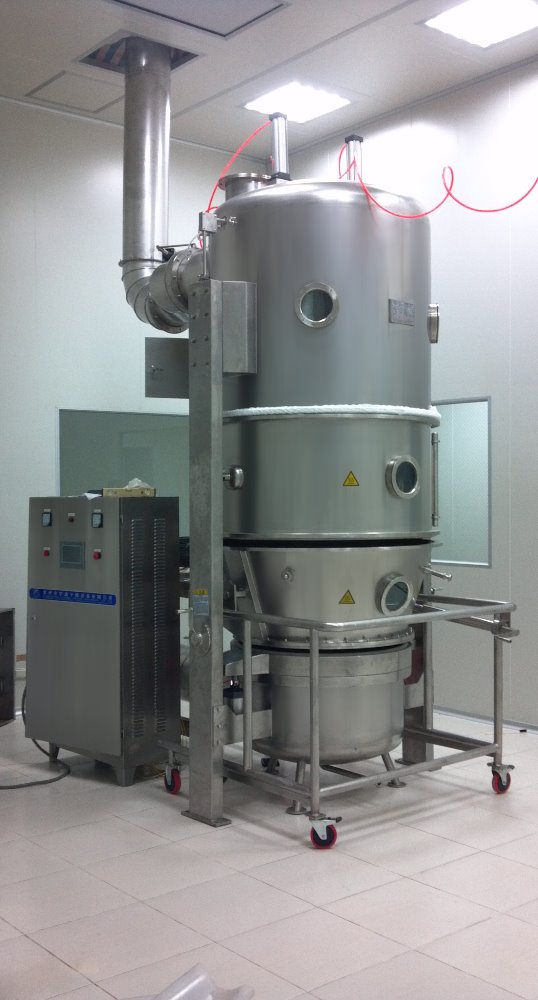

Fluid Bed Dryer

Name: Fluid Bed Dryer
Brand: ALFA INDUSTRIAL SOLUTIONS
Price: 450000.0 INR
Availability: InStock

Price 450000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Fluid Bed Dryer Specification

Power Supply
415 V, 3 Phase, 50 Hz

Size
30, 60, 120, 200 Kg (batch size options)

Operating Temperature
Ambient to 120C

Interface Type
User-friendly interface, digital/analog controls

Connectivity Type
PLC/HMI connection available

Model
FBD-120/ FBD-60/ FBD-30 (model variations available)

Mounting Type
Floor-mounted

Battery Backup
No

Shelf Life
N/A (industrial equipment)

Features
Uniform drying, quick heat transfer, energy efficient, touch screen controls, explosion flap safety mechanism

Range
Customized as per batch size

Frequency
50 Hz

Product Type
Fluid Bed Dryer

Application
Industrial drying of granules and powders; pharmaceutical, chemical, and food industries

Dimension (L*W*H)
2000 x 1450 x 2300 mm (approx. as per model)

Material
Stainless Steel (SS 316/SS 304)

Weight
Approx. 1200 kg (varies by model)

Capacity
30-200 Kg per batch (customizable)

Coverage Area
10-120 Kg batch size (model-dependent)

Noise Level
< 75 dB (at 1 meter distance)

Air Distribution
Perforated plate for uniform airflow

Discharge Mechanism
Bottom discharge with pneumatic or manual lever

Blower Motor Power
5-15 HP depending on model

After Sales Service
Available across major regions

Control Panel
PLC based with safety interlocks

Finished Product Moisture
0.2% - 1% final moisture depending on material

Filter Type
Stainless steel/Polyester cloth

Safety Features
Explosion vent, earthing, interlocking system

Fluid Bed Dryer Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Fluid Bed Dryer

Fluid Bed Dryer

We offer a high-efficiency Fluid Bed Dryer designed for uniform and rapid drying of powders and granules. The system ensures intimate contact between hot air and material, resulting in high heat transfer, reduced drying time, and low energy consumption. Its compact, cGMP-compliant design prevents overheating of heat-sensitive products and ensures stable, maintenance-free operation.

Key Features:

cGMP construction with SS 316 product contact parts
Uniform drying with reduced processing time
Digital temperature control for inlet & outlet air
Manual dampers for precise airflow control
Optional 3-stage filtration and PLC control system
Explosion flap and earthing for safe operation
Low energy consumption and long service life

Applications: Pharmaceutical, chemical, food & nutraceutical industries

Superior Drying Performance for Industrial Applications

Our fluid bed dryer combines rapid heat exchange, uniform airflow, and efficient moisture reduction, making it the perfect solution for drying bulk batches of granules and powders. Designed for use in pharmaceuticals, chemicals, and food processing, it achieves consistent results and high product quality regardless of the batch size or material.

Enhanced Safety and User-Friendly Operation

Your safety is paramount-this dryer is equipped with explosion vents, earthing, interlocking systems, and a PLC-based control panel for intuitive, secure operation. The user interface is both digital and analog, ensuring operators can easily monitor and control drying processes while maintaining compliance with rigorous safety standards.

Customizable and Versatile Drying Solutions

Flexible design options allow selection from batch sizes of 30 to 200 kg and material finishes in SS 316 or SS 304. The modular build and customizable air distribution, filter type, and discharge options make this dryer adaptable for different process requirements and industries.

FAQ's of Fluid Bed Dryer:

Q: How does the Fluid Bed Dryer ensure uniform drying of materials?

A: The dryer uses a perforated plate for air distribution, which delivers consistent airflow throughout the drying chamber. This uniform airflow guarantees that each particle of granules or powder receives equal heat exposure, resulting in homogeneous and efficient drying for every batch.

Q: What safety features are incorporated in this Fluid Bed Dryer?

A: This dryer incorporates advanced safety mechanisms including an explosion vent, earthing provisions, explosion flap, and an interlocking system. These features, along with the PLC-based control system, help prevent accidents and protect both operators and equipment during operation.

Q: When should I choose different filter types for my application?

A: Filter selection depends on the material being dried and industry standards. Stainless steel filters offer durability and are ideal for applications requiring frequent cleaning and high hygiene, while polyester cloth filters are suitable for fine powders and applications that demand lower filter maintenance costs.

Q: Where can after-sales support be accessed for this product?

A: After-sales service for this Fluid Bed Dryer is available across major regions throughout India. Comprehensive support includes installation guidance, maintenance services, and the supply of spare parts to ensure uninterrupted operation.

Q: What is the typical process flow for operating the Fluid Bed Dryer?

A: Operation begins by loading the material into the drying chamber, selecting desired parameters via the PLC/HMI touch screen, and starting the blower motor. Heated air evenly passes upward through the perforated plate, fluidizing the product while extracting moisture. Discharge is accomplished via either a pneumatic or manual bottom lever.

Q: How does using this dryer benefit my industrial drying operations?

A: This dryer provides rapid and energy-efficient drying, tailored batch capacities, enhanced product quality, and reduced final moisture (as low as 0.2%). The user-friendly PLC controls and robust safety features translate to minimal downtime and superior operator safety, maximizing productivity.

Q: What applications are ideal for the use of this Fluid Bed Dryer?

A: The dryer excels in industrial drying of powders and granules, particularly within pharmaceutical, chemical, and food manufacturing industries. Its flexibility and reliability make it suitable for any process requiring precise moisture control and fast, uniform drying.
