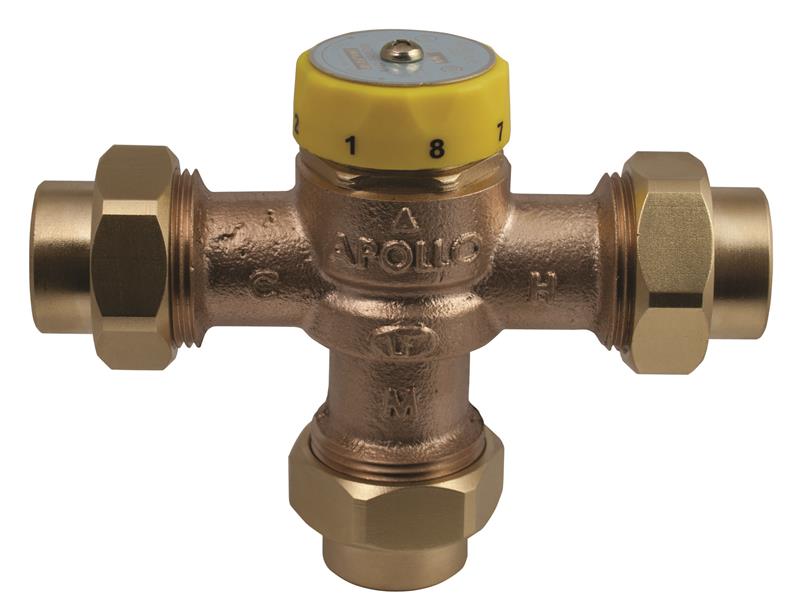

Apollo thermostatic mixing valve

Name: Apollo thermostatic mixing valve
Brand: ALFA INDUSTRIAL SOLUTIONS
Price: 5100.0 INR
Availability: InStock

Price 5100.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Apollo thermostatic mixing valve Specification

Mounting Type
Horizontal or vertical

Flow Rate
12-90 L/min (depending on port size)

Application
heating

IP Rating
IP54

Sealing
EPDM/ Viton O-rings

Noise Level
<30 dB(A)

Diameter
DN15, DN20, DN25

Connection
Threaded (BSP/NPT), union connections available

Pressure Ratings
Maximum working pressure: 10 bar

Valve Type
Mixing valve

Capacity
Suitable for 1-10 outlets

Standard
EN1111, ASSE 1017, ASSE 1070, BS 7942

Material
Brass body, Stainless steel internals

Temperature
35C to 65C (adjustable), Factory set at 38C

Size
1

Media
Water

Structure
Thermostatic mixing, piston type

Power
Manual (non-powered)

Port Size
1/2 inch, 3/4 inch, 1 inch

Model
Apollo Thermostatic Mixing Valve

Pipe Connection Type
Male/Female threaded

Check Valve
Integrated non-return valves

Temperature Stability
2C

Filter
Removable strainers fitted to inlets

Maintenance
Serviceable in-line without removal from pipework

Surface Finish
Nickel plated

Thermal Shut-off
Automatic shut-off in case of cold water failure

About Apollo thermostatic mixing valve

Superior Thermostatic Element Technology For Optimal Performance, Reliability and Accuracy
Integral Inlet Strainers and Check Valves are Standard to Protect Against Cross-Flow and Foreign Particles in the Piping System
Thermostat Over-Temperature Control
Fingertip Temperature Control
Cold or Hot Water Supply Failure Shut-Off Protection
Multiple Connection Options to Fit Your Specific Needs
Lead Free Construction Certified: 0.25% Lead Max
Made in USA - ARRA Compliant

Intelligent Safety Mechanisms

The Apollo Thermostatic Mixing Valve includes an advanced automatic thermal shut-off system. If there is a cold water supply failure, the valve immediately halts the flow, preventing accidental scalding. Integrated check valves enhance backflow prevention, making the system exceptionally safe and reliable for domestic and commercial applications alike.

User-Friendly Maintenance and Installation

Maintenance is seamless thanks to removable strainers and in-line serviceability, allowing filters to be cleaned or replaced without detaching the valve from pipework. With threaded male/female union connections (BSP/NPT), installation is straightforward and versatile, supporting both horizontal and vertical mounting options.

Superior Control and Durability

The mixing valve operates manually, without the need for a power supply, and features robust materials like a brass body and stainless steel internals. Its nickel-plated finish resists corrosion, and it maintains a temperature stability within 2C. The device also operates quietly, at less than 30 dB(A), and carries an IP54 rating for added protection.

FAQ's of Apollo thermostatic mixing valve:

Q: How does the Apollo Thermostatic Mixing Valve enhance user safety?

A: The valve's thermal shut-off feature automatically stops hot water flow if there's a cold water failure, effectively preventing scalding. Integrated non-return valves ensure no backflow occurs, meeting advanced safety standards.

Q: What makes the Apollo valve easy to maintain and service?

A: It has removable strainers and is serviceable in-line, allowing for cleaning or part replacement without removing the valve from existing pipework, which reduces downtime and eases routine maintenance.

Q: When should I consider using the Apollo Thermostatic Mixing Valve?

A: This valve is ideal for managing water temperature in heating systems for both residential and commercial properties-particularly where consistent, safe temperature control for multiple outlets is required.

Q: Where can this mixing valve be installed?

A: Its versatile design allows for horizontal or vertical installation, making it suitable for a range of plumbing layouts in bathrooms, kitchens, or HVAC systems.

Q: What is the process for adjusting the water temperature?

A: The valve enables manual adjustment of the outlet temperature between 35C and 65C (factory set at 38C), using its control knob. This ensures tailored comfort and safety for users.

Q: How does the Apollo valve benefit building owners or facility managers?

A: Its robust construction, compliance with international safety standards, and ease of maintenance reduce operational costs, enhance occupant safety, and extend product longevity.

Q: What sizes and connection types are available for installation?

A: The Apollo Thermostatic Mixing Valve is offered with port and pipe sizes of 1/2 inch, 3/4 inch, and 1 inch (DN15, DN20, DN25), and is compatible with both BSP and NPT threaded connections (male/female), giving installers ample flexibility.
